Swivel Elbow Guide

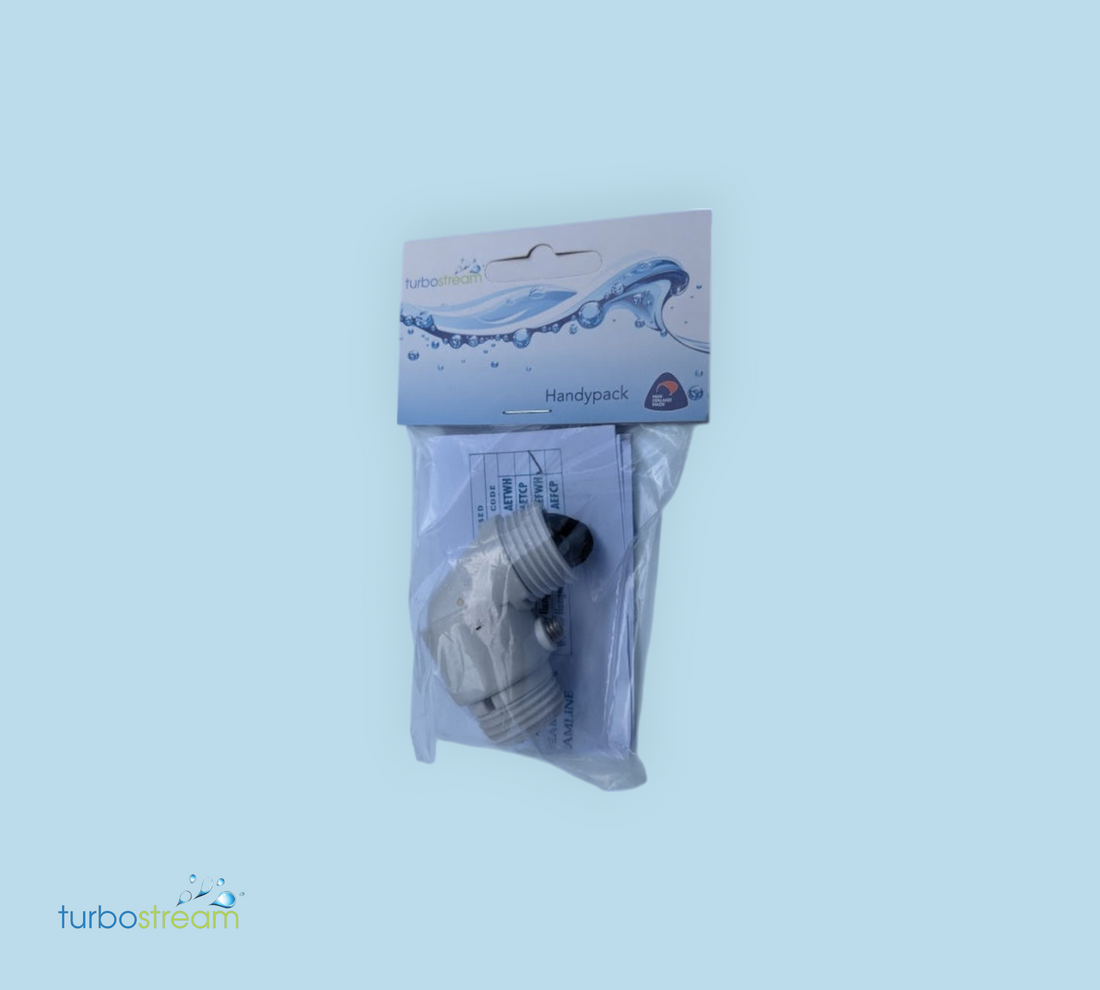

Streamline swivel elbow AETWH or AETCP

1. Separate elbow from straight connector.
2. With rose and handle removed from Turbostream screw connector into Turbostream valve ensuring sealing washer is in place.
3. Use the blade of a flat screwdriver in the recess slot on connector to tighten.
4. Attach slide shower hose to elbow with washer supplied required.
5. Refit handle and insert swivel elbow on to connector, making sure "O" ring is not pinched.
6. Tighten retaining grub screw sufficiently to hold elbow in place while still allowing the elbow to turn.

DO NOT OVERTIGHTEN GRUB SCREW.
